| Tecnical data |
| Nominal voltage Applications | 450/750 V |
| Applications / Usage conditions | For secondary side connection of powers sources for hand or automatic metal-arc welding for secondary voltage typical of welding equipment. |

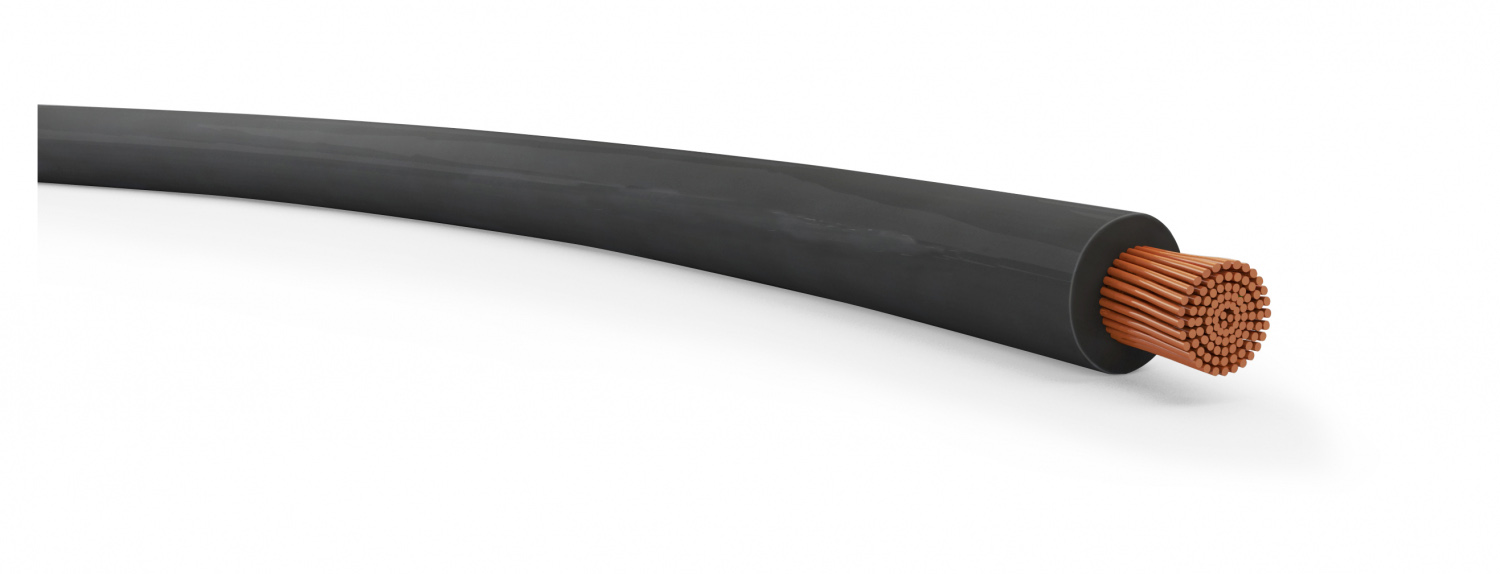

| Conductor | Flexible red copper |
| Sheath type | TM2 (EN 50363-4-1) |
| Sheath colour | Black |
| Operating temperatures | -20° C | +70° C |
| Short circuit temperature | 160° C |
| Test voltage | 2500 V |
| Cable markings | iFLEX (sect) mm² CE |
| Minimum bending radius | For cables with diameter up to 12 mm: 5 times the max. outer diameter in case of non-constrained motion and 4 times in case of fixed installation For cables with greater diameter: 6 times the max. outer diameter in case of non-constrained motion and 5 times in case of fixed installation. |
