| Tecnical data |
| Nominal voltage Applications | 1,0/1,0 kVca - 1,5 kVdc |

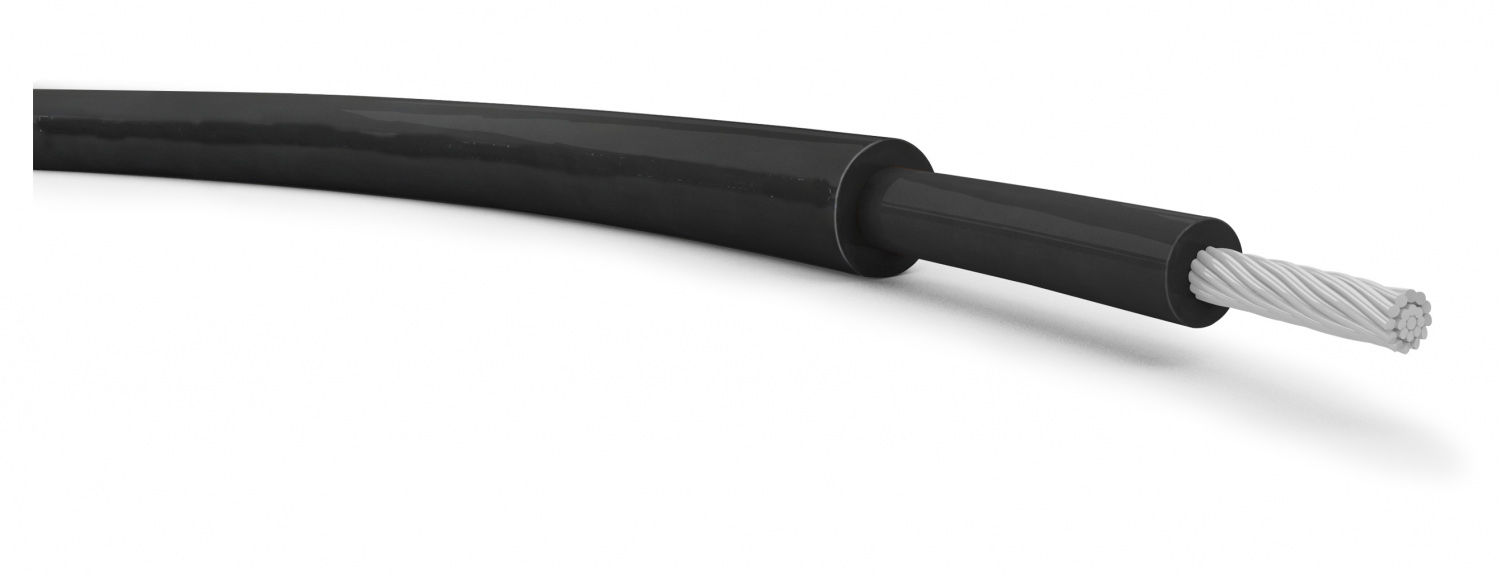

| Applications / Usage conditions | The single core H1Z2Z2-K cable represents a right solution to link the solar cellars between them or to wire with frequency converters and terminal boards. The H1Z2Z2-K cable guarantees good resistance to UV-rays and various weather conditions. The wide working temperature range allows the use also in extreme conditions, avoiding deterioration caused by heat and permitting a right use of the fotovoltaic panel in every season. |
| Conductor | Flexible tinned copper |
| Insulation type | Compound conforming to EN 50618 |
| Sheath type | Compound conforming to EN 50618 |
| Sheath colour | Black, blue, red |
| Operating temperatures | -40° C | +90° C |
| Short circuit temperature | Max 250° C 5 sec |
| Test voltage | 6500 Vac - 15000 Vdc |
| Cable markings | H1Z2Z2-K (I/II)* 1xsect. mm² TÜV Rheinland Dca-s2,d2,a1 max 1,8KVdc |
| Minimum bending radius | 4 times the cable diameter for fixed and mobile laying. |
| Notes | * Markings depending on raw materials. 16 mm² version only for H1Z2Z2-K I. Presence of water: AD8 category according to EN 50525-2-21 Annex D & Annex E (in house test only for H1Z2Z2-K I): 100 days at 2,5 kV in water at 50±2° C. |
